Long stripping length round sheath flat sheath cable cutting and stripping machine

Automatic Cable Cutting and Stripping MachineEspecially for long cable high accurate cutting and stripping.The machine is an automatic cable cutting stripping machine: cutting cable to required length, stripping at both ends or single-end, or half-stripping. We can customize the machine to fit the r

Featured Products

Automatic Cable Cutting and Stripping Machine

Especially for long cable high accurate cutting and stripping.

The machine is an automatic cable cutting stripping machine: cutting cable to required length, stripping at both ends or single-end, or half-stripping.

We can customize the machine to fit the round cable and flat cable, strip the cable outer sheath and inner skin.


Specification:

Operation panelTouch screen
Cable diameter suitable1-8mm or customized
Cutting length42-99999mm
Stripping length outer10-300mm, support customized
Stripping length inner2-20mm or customized
MotorPanasonic servo motor
Operation modeSingle stroke and continuous actions
Unit size1950*650*1500MM
Weight400KG

Features:

1. This machine is an automatic wire cutting machine that cuts the wire size, strips cable at both ends, single-end and half-strips the cable;

2. Use servo motor to control wire cutting, stripping and other actions to make the wire length more accurate;

3. The length change and full stripping and half stripping are set by computer, which is simple and fast;

4. The change of stripping length and cutter depth adopts fine-tuning rotation method, which is simple and fast;

5. The speed can be divided into three sections, which can be set according to the wire specifications, so that both thick and thin wires can be produced stably;

6. Each detection standard has functions such as low air pressure, stuck cylinder, abnormal motor, consistent counting, etc., it can automatically stop when abnormal, and display the detected situation on the man-machine interface, which facilitates rapid troubleshooting and reduces downtime;

7. The best features are less adjustment technology, short adjustment time, convenient and simple operation.



Pictures:

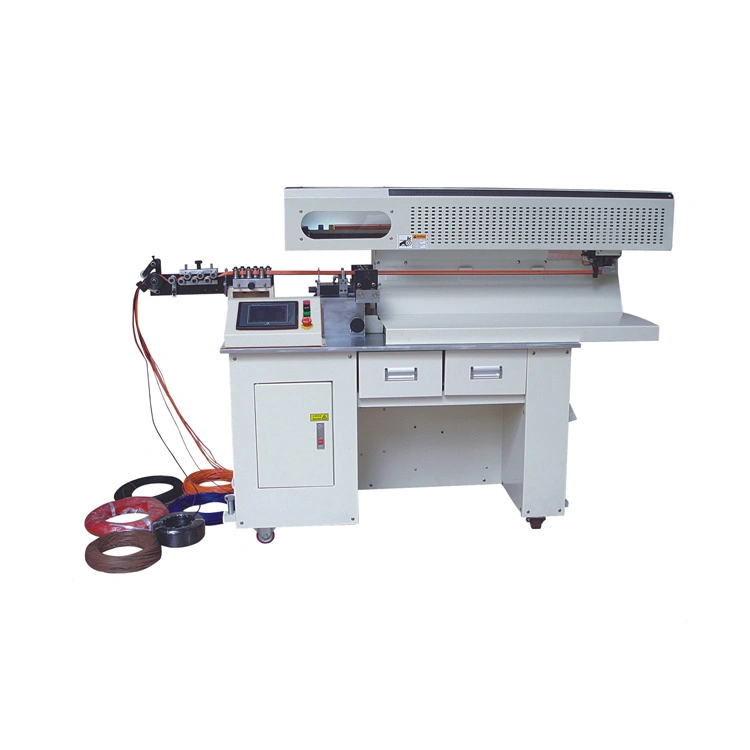

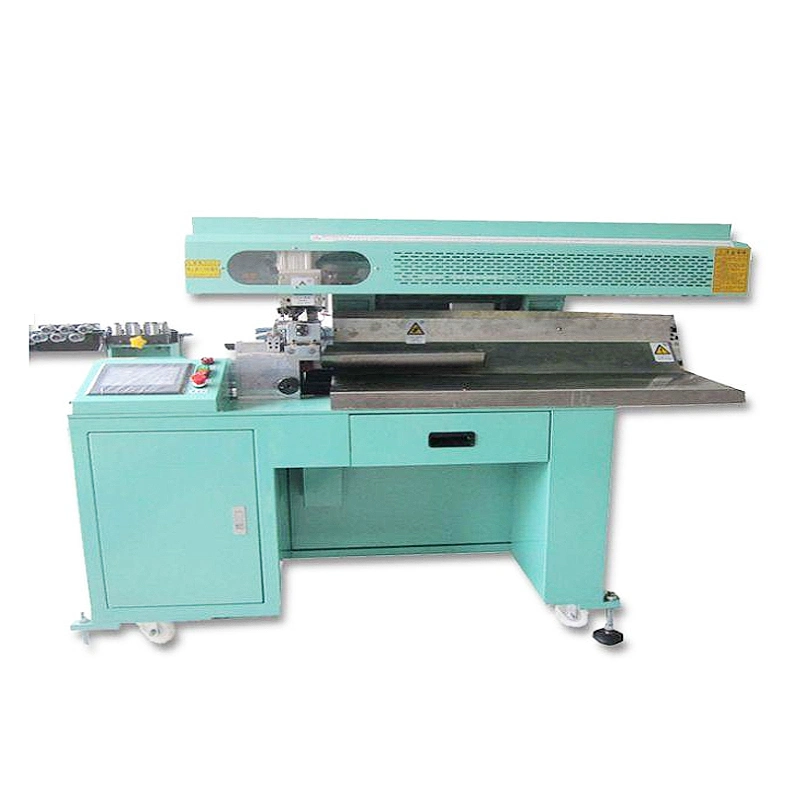

Long Stripping Length Round Sheath Flat Sheathed Cable Cutting Stripping Machine
Long Stripping Length Round Sheath Flat Sheathed Cable Cutting Stripping Machine
Long Stripping Length Round Sheath Flat Sheathed Cable Cutting Stripping Machine

Service:



FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:

Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
Long Stripping Length Round Sheath Flat Sheathed Cable Cutting Stripping Machine
Long Stripping Length Round Sheath Flat Sheathed Cable Cutting Stripping Machine
